Carry Roller


Carry Rollers are used to support the conveyor belt and are installed on the groove-shape frame,groove-shape forward inclined idler frames and transition idler frames.

  • Product Description
    • Product name: Carry Roller

    Carry Rollers are used to support the conveyor belt and are installed on the groove-shape frame,groove-shape forward inclined idler frames and transition idler frames.

    MYC Roller Introduction
    * Roller is an important part of the belt conveyor. There are many types of rollers such as carrier roller, impact roller, RDRT roller, return roller and so on. The function of roller is to support the belt, reduce the running resistance of the belt and make the verticality of the belt not exceed a certain limit to ensure the smooth running of the belt.
    * Roller accounts for 35% of the total cost of a belt conveyor system and generates more than 70% resistance, so the quality of roller is particularly important.
    * MYC roller adopts self-developed double labyrinth seal structure, which is better than traditional seal structure in waterproof and dustproof effect. Roller pipe adopts high-frequency welding pipe special for rollers, shaft adopts cold drawn bright shaft special for rollers, and bearing housing is made by stamping, drawing and welding with mixed gas. After the roller is welded, both ends are chamfered and polished, and then polish and remove the rust of the pipe surface. The roller surface adopts outdoor powder coating, heating and curing. The roller adopts a double-head pressing machine to press the bearing and the seal in three times, so as not to damage the seal and protect the bearing. The shaft end is subjected to the final anti-rust treatment, and finally put into the export-specific crates.
    * The MYC series of rollers have a wide range of products, including steel rollers, impact rollers, RDRT rollers, rubber-coated rollers, self-aligning rollers, oil injection rollers, galvanized rollers and other types. The size specifications can be customized according to the customer's drawings, also can be produced according to the standards of various countries. For detailed specifications, you can ask us for a product manual.

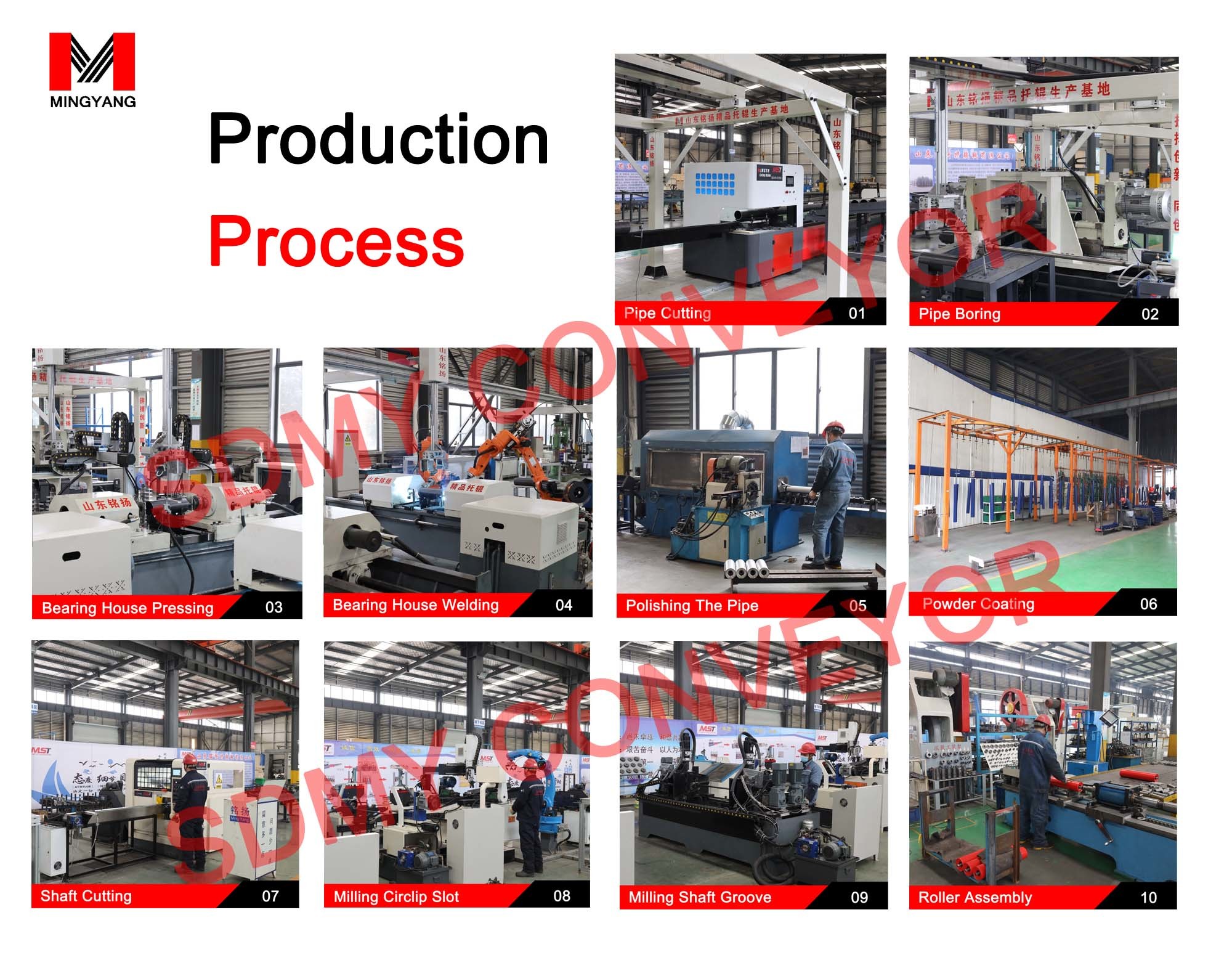

    * At present, MYC has the most advanced fully automatic production line for rollers in the industry. The entire production process uses robots instead of manual processing and production. Currently we have 2 automatic production lines and 2 semi-automatic production lines, which can achieve a daily output of 2000 rollers. For roller frames, we use a fully automatic laser cutting machine to cut the material, and use a CNC bending machine to produce the parts of the frame. Welding adopts a robot. Surface treatment is shot blasting and hot-galvanizing in accordance with international standards.


    MYC Roller Specifications
    No. Item Description
    1 Brand MYC
    2 Roller Diameter 60/63.5/76/89/102/108/114/127/133/140/152/159/178/194/219mm
    3 Shell Thickness 3/3.5/4/4.5/5/5.5/6mm
    4 Face Length 100mm-4000mm
    5 Shaft Diameter 20/25/30/35/40/45/50mm
    6 Bearing 6204/6205/6305/6206/6306/6307/6308/6309/6310
    7 Bearing Type ZZ C3 / ZRS C3
    8 Bearing Brand LYC/SKF/FAG/NSK
    10 Pipe Material Carbon Steel Q235
    11 Shaft Material Cold Drawing Round Steel
    12 Surface Treatment Powder Coating/Galvanizing
    13 Surface Color Customized
    MYC Production Equipment and Capacity
    * We have an automated CNC production line designed and manufactured by ourselves. The production line contains the following unique core patented equipment:
    Fully automatic extrusion equipment
    Fully automatic injection molding equipment
    Two-way CNC plastic roll lathe
    Two-way milling machine with flat slot
    CNC Pipe cutting machine for plastic pipe
    * Our automatic production single line processes 50,000 rollers per month and we also have the ability to expand production capacity.
    * Our CNC automatic processing equipment can fully guarantee the processing accuracy and quality of the products.
    MYC Roller Advantages
    * Choose the raw material with the very best quality from the market.
    * Use the most advanced automation equipment for production.
    * Long-life span, high quality and energy-saving products.
    * Over 15 years experience of design, innovation, maintainence and production.
    * Certified by ISO 9001, ISO 14001, ISO 45001, SGS, BV and other authorized certifications.
    * Good reputation from the customers all over the world with longtime cooperation.
