  • Impact beds.jpg

Impact beds

Summary:

Avoids the damage to the belt through the contact between the bar and surface of belt.

  • Product Description
    • Product name: Impact beds

    Avoids the damage to the belt through the contact between the bar and surface of belt.

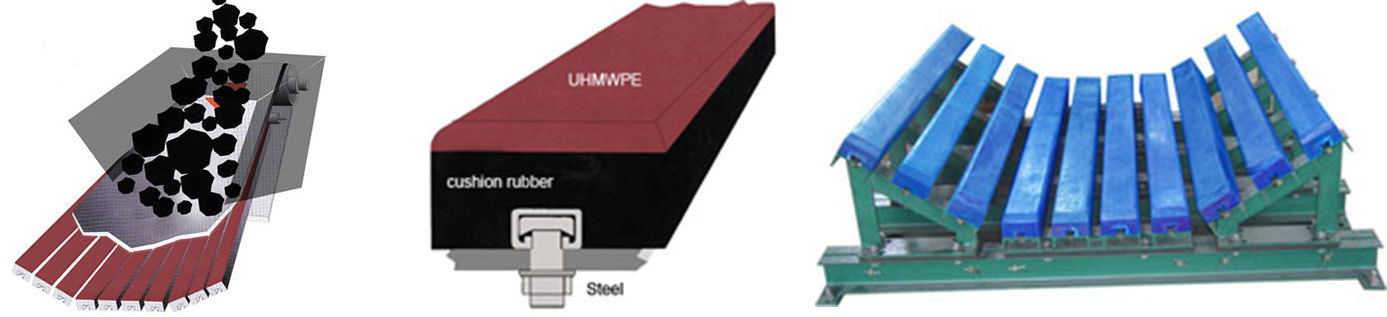

    Impact Bed & Impact Bar

    pic

    Features:
    1.Avoids the damage to the belt through the contact between the bar and surface of belt.
    2.The conveyor belt is stressed evenly in the loading area, which will reduce  the daily maintenance cost.
    3.Effectively eliminate the spillage or scattering of the material caused by unequality of the stress on the belt.
    4.The UHMW polyethylene surface has outstanding sliding properties.
    5.Arc surface of polyethylene enables the conveyor belt to running smoothly.
    6.Ultra elastic rubber absorb the impact in the maximum.
    7.Each part of the impact bar is closely jointed by hot vulcanization. Fastening device has different tightening points along the bar and make the joining strong and reliable, easy to install and remove.

    pic

    UHMWPE

    Color of UHMWPE

    Yellow

    Blue

    Tensile strength

    (N/mm2)

    44

    Elongation at break

    (%)

    50

    Hardness

    (Shore D)

    63-90

    Density

    (g/cm3)

    0.94

    Coefficient of friction



    0.03

    Color of rubber

    Black

    Tensile strength

    (Mpa)

    15

    Elongation at break

    (%)

    500

    Hardness

    (Shore A)

    45

    65

    Elasticity

    (%)

    70

    55

    Size and Specification:



    Types

    Size (mm)

    Height

    Width

    Length

    IPB-A-1

    50

    100

    1220

    IPB-A-2

    75

    100

    1220

    IPB-A-3

    100

    100

    1220

    IPB-B-1

    50

    100

    1524

    IPB-B-2

    75

    100

    1524

    IPB-B-3

    100

    100

    1524

    pic
